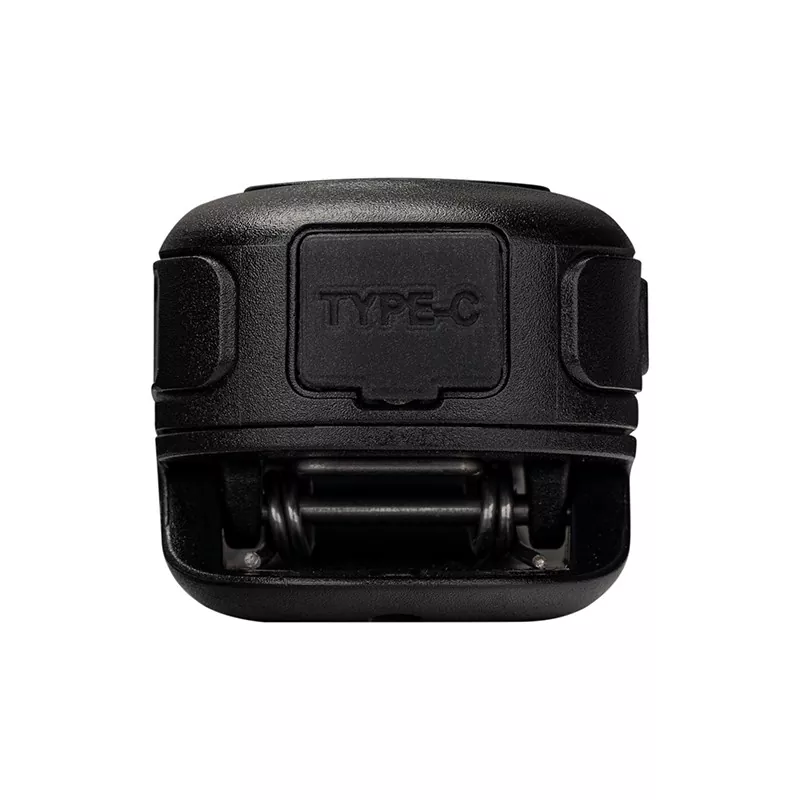

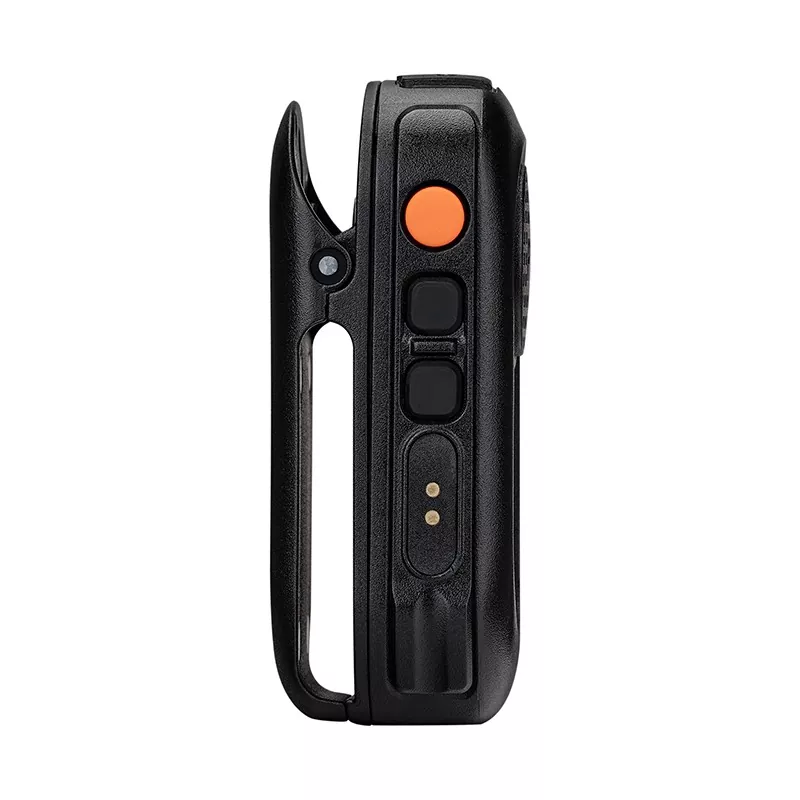

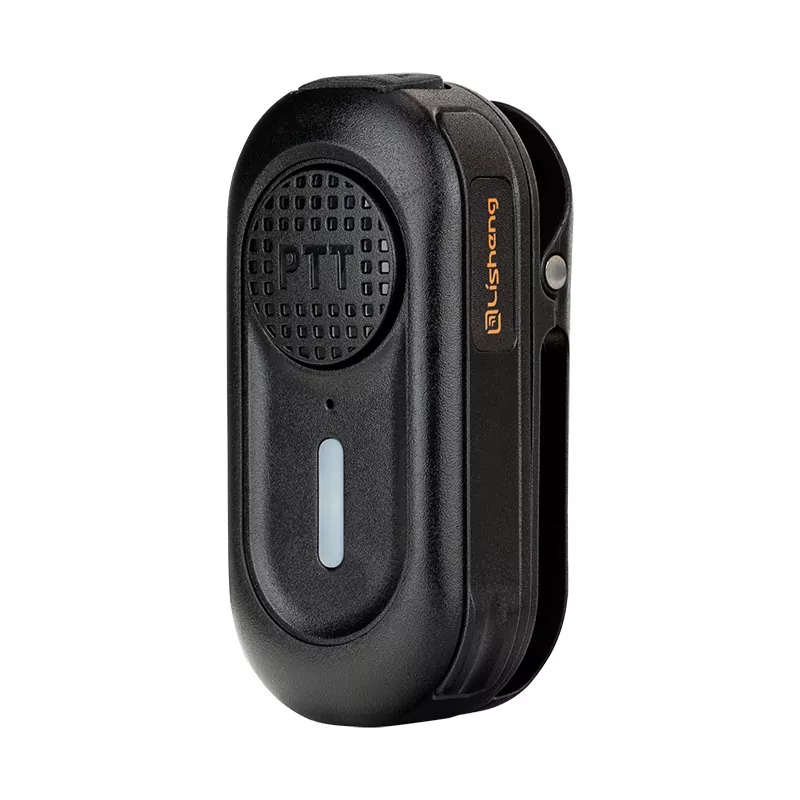

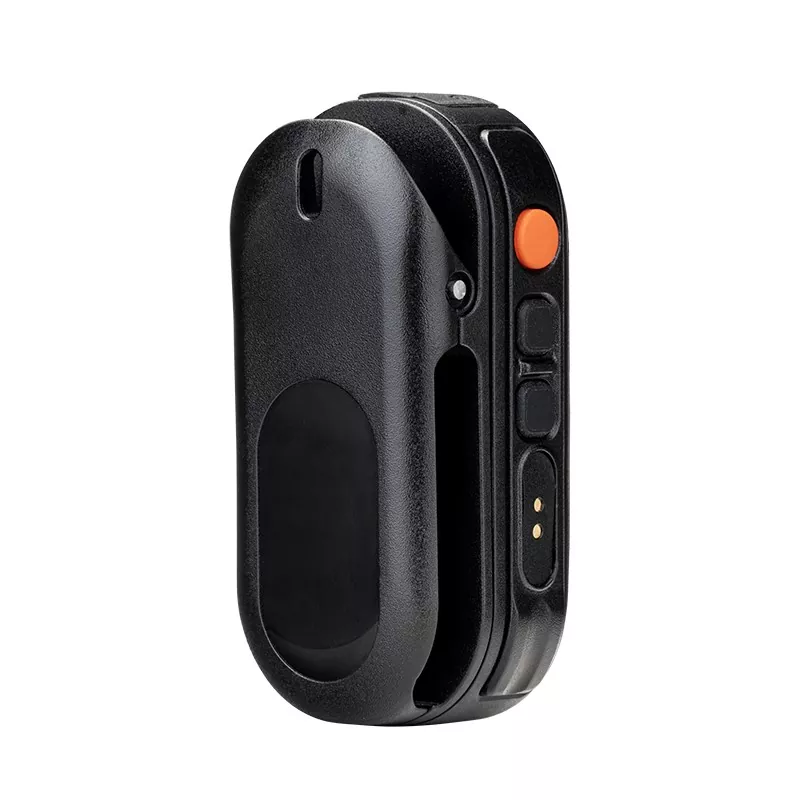

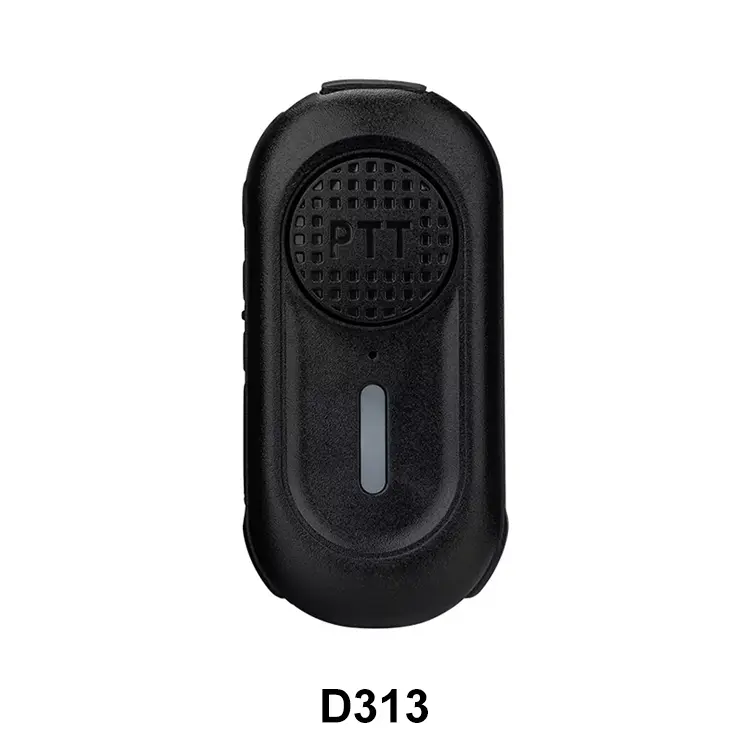

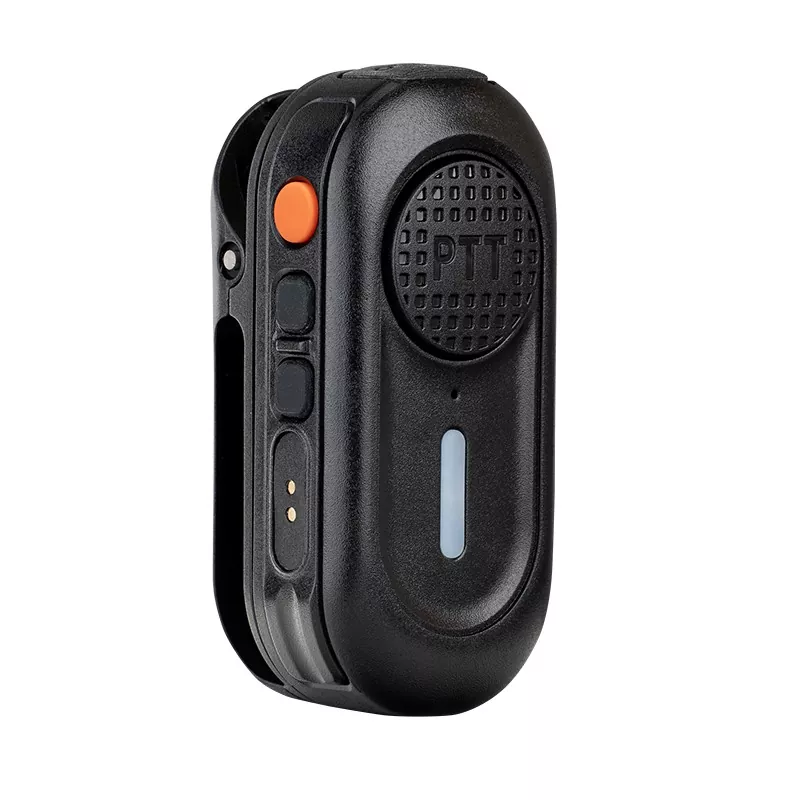

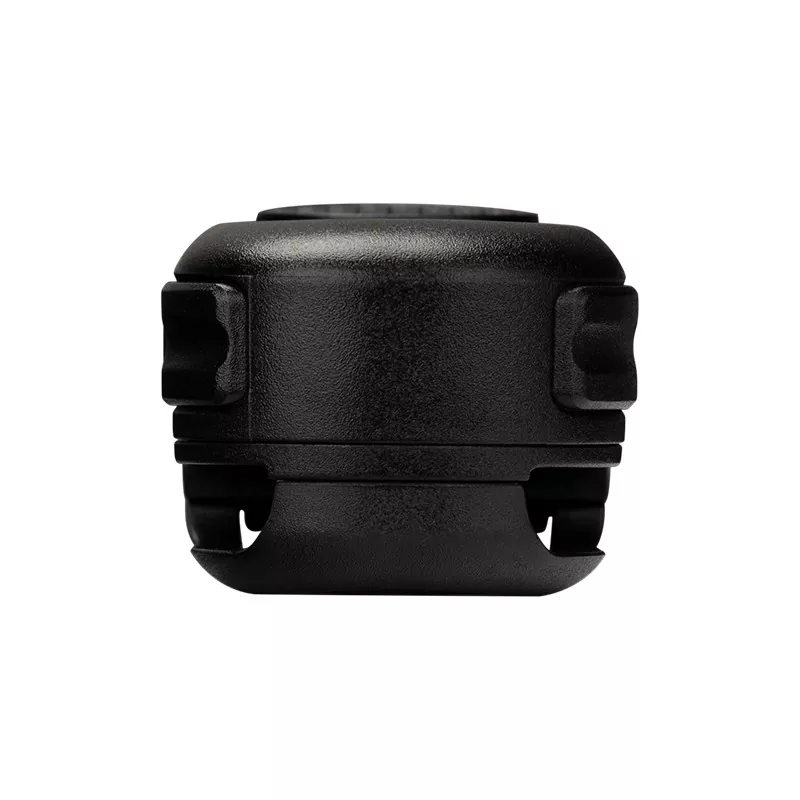

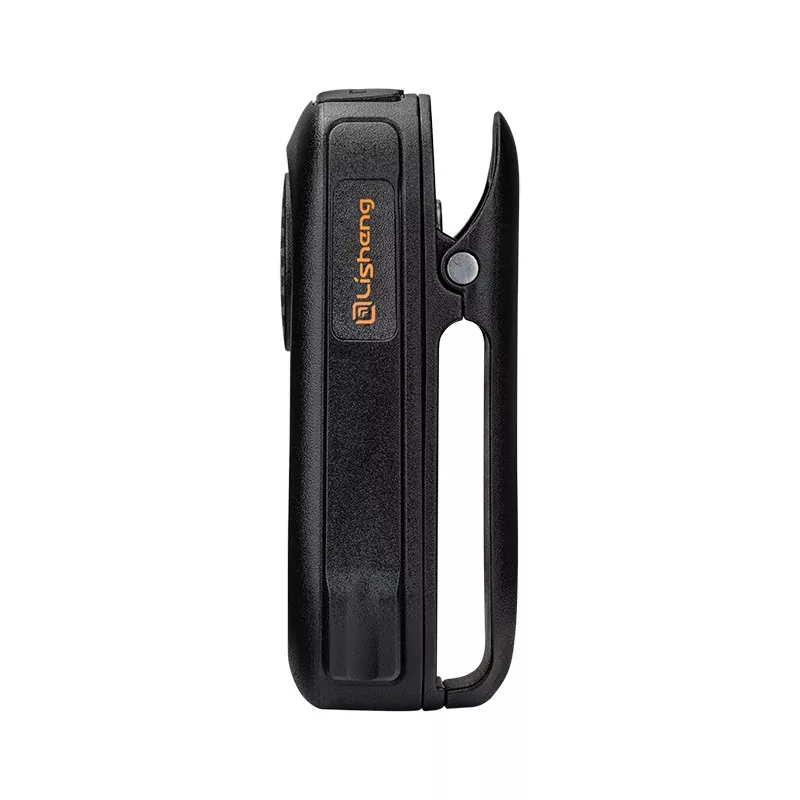

Wearable Ultra-Foedus DMR Radio

Radio Foedus Ultra-Foedus DMR radiophonicus parva amplitudo est, corpus digitalis duo-via radiophonicum DMR innixum vexillum (Digital Mobile Radio) est. Ad leve pondus ac discretum communicationem destinatur, utentes utentes eam induant in vestitu, cingulo, vel instrumento ad manuum liberam operationem in opere cotidiano. Quamvis factor eius forma compactus, stabilis vocis digitalis qualitatem, spectrum efficientis usum, et brevem communicationem mediarum communicationis per conventionalem infrastructuram certissimam tradit. Quae machinae communiter adhibentur in securitate, in hospitalitate, in scruta, in fabricandis, et in operationibus eventuum in quibus manifesta, instante et privata communicatio in consilio portabili et durabili requiritur.

Product Specification:

General
Frequentia Range	400~480MHz
Channel Spacing	12.5 KHz / 25 KHz
Channel	256
Zona Capacity	8  Zones（32 rivos）
Operans intentione	3.8V
Pugna Capacitas	950mAh
Pugna vitae (5/5/90)	Analog modus: 6.7 horas Digital modus: 7.4 horas
Vocoder Type	AMBE+2
Frequentia Stabilitas	±1.0ppm
Antennae Impedimentum	50Ω
Dimensiones (sine Antennae)	67mm* 32.5mm*27.5mm
Pondus	circa 42g
receptor
Analog Sensibilitas	0.2μV(FM @ 12dB SINAD)
Digital Sensibilitas	0.22μV(typ.) (@ 5% BER)
Adiacentibus Channel Selectivity	60dB @ 12.5KHz 65dB @ 25KHz
Intermodulatio reprobatio	60dB @ 12.5KHz 60dB @ 25KHz
Clausus	84dB @ 12.5KHz /84dB @ 25KHz
Co-channel Rejectio	-12dB @ 12.5KHz  -8dB @ 25KHz
Responsio spuria rejectio	65dB @ 25KHz / 65dB @ 25KHz
Rated Audio Output Power	1.0W /16Ω
Conducted Spuria Emission	<-57dBm（9KHz～1GHz） <-47dBm（1GHz～12.75GHz）
Transmitter
RF Power	1W (Low) / ≤2W (High)
Power Margin Variation	+2/-3dB (sub extrema condicione)
Frequentia  Error	±1.0ppm
FSK Error	<5%
4FSK Transmissio Bit Error Rate (BER)	≤1×10-4
4FSK Modulation Frequency Deviationis Error	≤10.0%
Occupatus Bandwidth (DMR)	≤8.5KHz
TX Impetum / Release Tempus	≤1.5ms
Adiacentis Channel Power	≤-50dB @12.5KHz/≤-60dB @25KHz
Transiens Adjacens Channel Power	≤-50dB @ 12.5KHz / ≤-60dB @ 25KHz
FM Modulation	16K0F3E @25KHz/ 11K0F3E @12.5KHz
4FSK Digital Modulation	12.5KHz（data only）：7K60FXD 12.5KHz（data＋voice）：7K60FXE
Audio Distortion	≤3% @ 40% Deviation
Audio Response	+1 ~ -3dB
FM Hum et Sonitus	40dB @ 12.5KHz / 45dB @ 25KHz
emissio spuria	≤-36dBm (9KHz～1GHz) ≤-30dBm (1GHz~12.75GHz)

Nota: praedictae determinationes secundum signa applicabiles probatae sunt. Ob continuam technologiam evolutionem, indices superiores sine praevia notatione mutabiles sunt.

Product Details:

· Digital/Analog Compatible

· ARC4/AES128/AES256 Encryption

· Power Selective

· SOLUS operarius

· Single Call / Group Call/All Call

· Voice Operated Transmit (VOX)

Nostra Inseptio et sarcina sectio:

commendamus nos tradens top-qualitatem duos modos radiophonicos, ut unumquodque productum in summis signis occurrat per accuratas inspectiones et processus pacandi. Nostra inspectio et turmas sarcinas responsabilitatem fert ut clientes certos fructus accipiant, experientiam liberorum usorum anxietatem praebentes.

Processus recognitionis:

1、 Inspectio Visual: Singulae duae radiophonicae inspicientia penitus visuales subit ut aesthetica perfecta curent quae align cum imagine notae societatis.

2、Functionality Testis: Inspectio nostra turmas comprehensivas functionis quas in omni radio pertractat, omnia curans lineamenta recte agunt. Haec munera clavis includit ut qualitatem audio, robur insignem, et commutatione canalis.

3、Durability Testing: Producta vetustatem probationes subeunt ut in variis condicionibus environmental proprie fungantur, inter extremas temperaturas, humiditatem et vibrationes.

4、 Pugna euismod Testis: Pugna vita pendet pro radiophonico. Testimonia stricta in gravida geruntur ad usum certum, extensum.

Processus packaging:

1 Anti-Static Packaging: Quisque radiophonicum impedimentum anti-staticum patitur ne electrostatic damnum in translatione.

2、Environmentally Friendly Packaging: Commissum ad sustinendum, materias nostras sarcinas adhaerent ad signa environmental internationales.

3、 Offensus-repugnans Packaging: incursu professionali resistens packaging adhibetur per translationem ad impediendum damnum products.

4、Integritas Perscriptio: Societates packaging permittit ut integritas finalis inspiciat ut fructus integra et illaesa maneant post processum packaging.

Inspectio et processuum fasciculorum intendunt ut expectationes mos praecellant, ita ut omne radiophonicum in bivio acceptum rigorem probationis et sollicitae sarcinae ut summus qualitas operis patiatur.
