Professio DIGITAL Trucking Radio

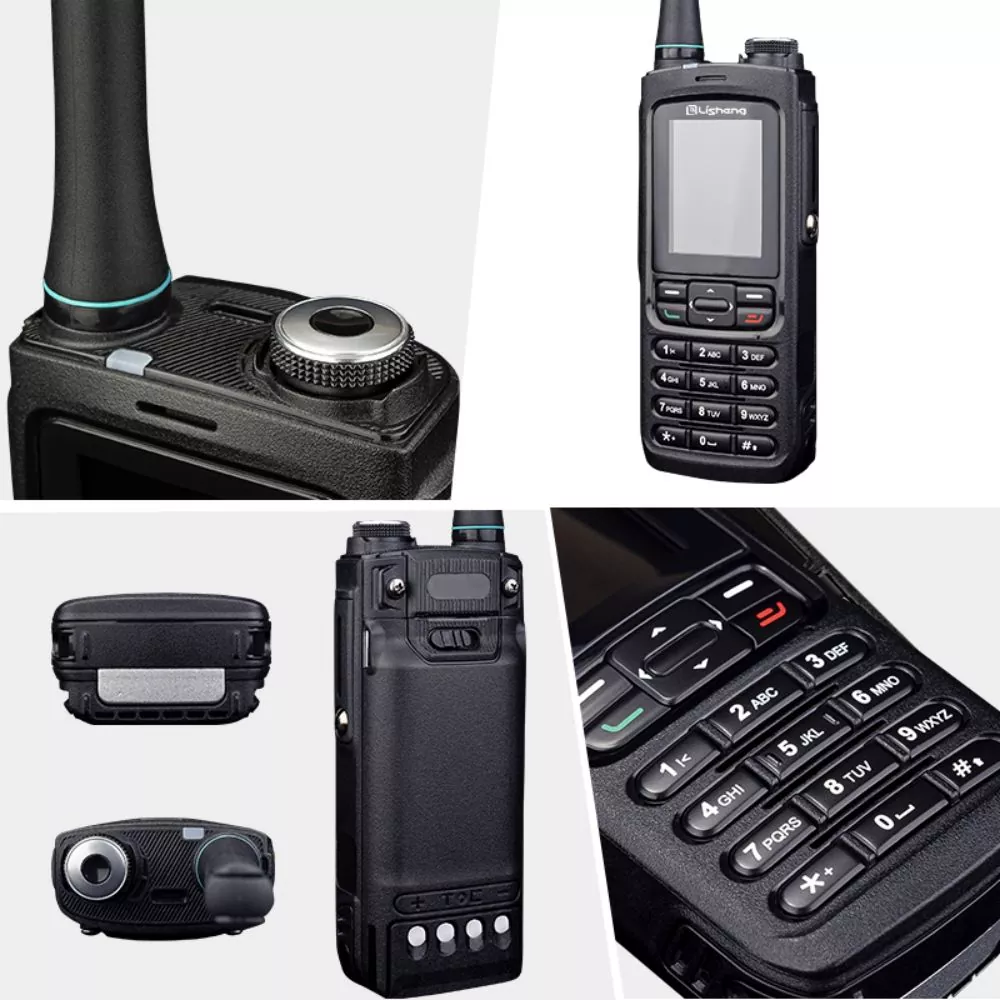

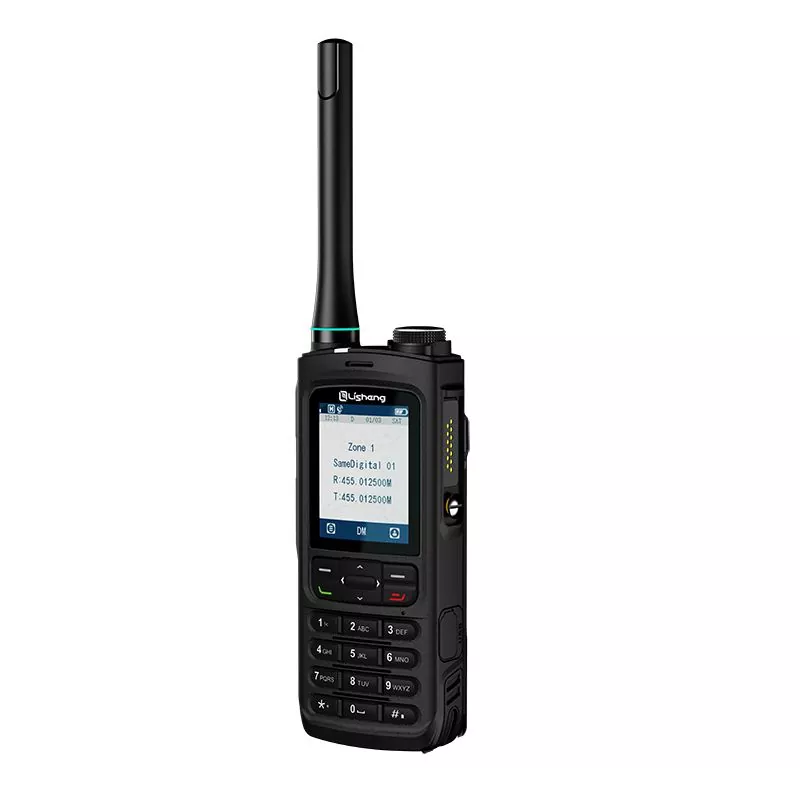

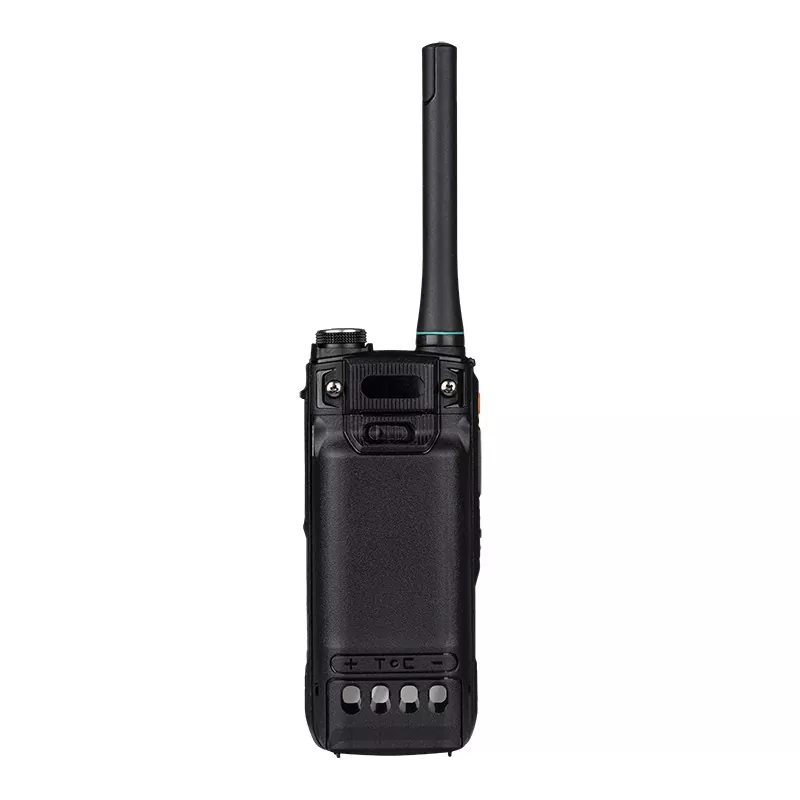

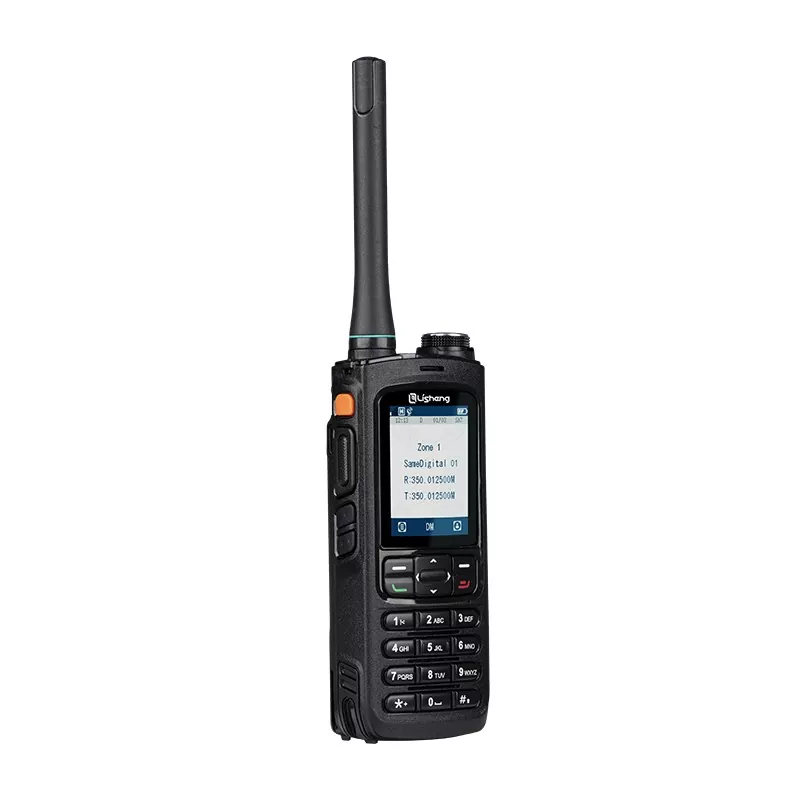

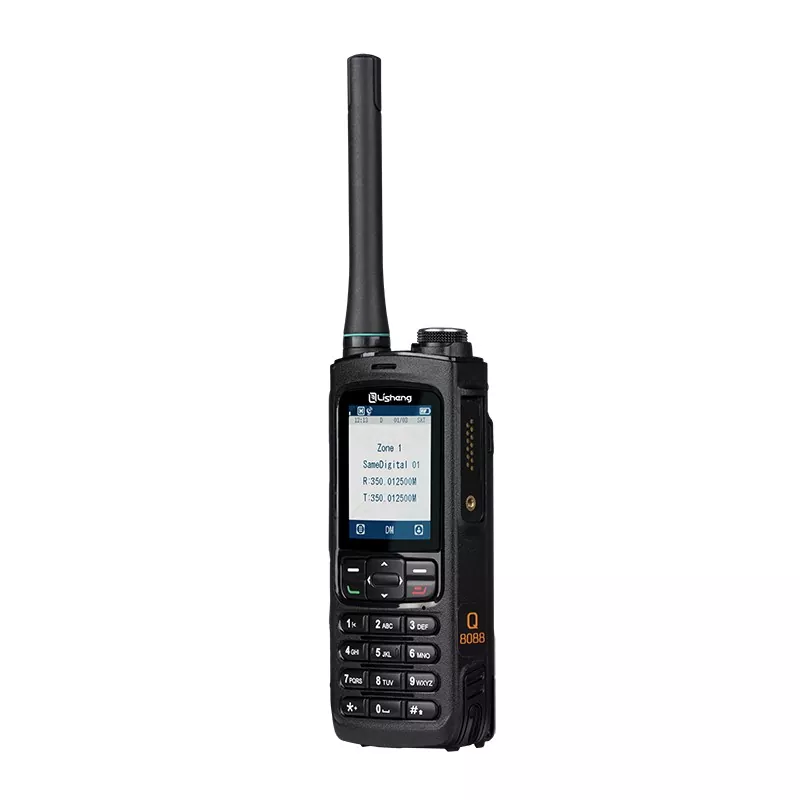

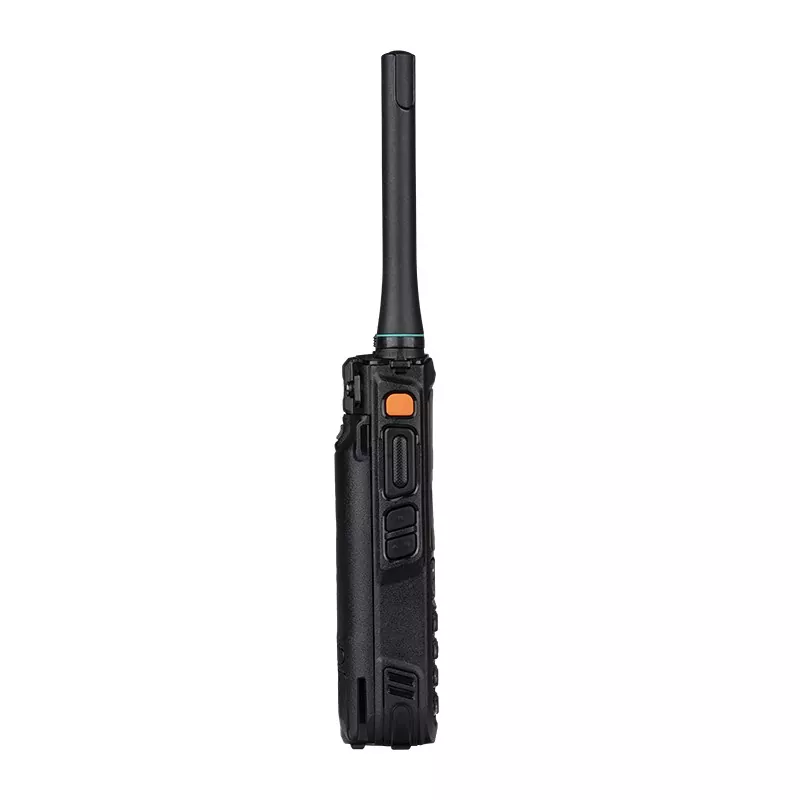

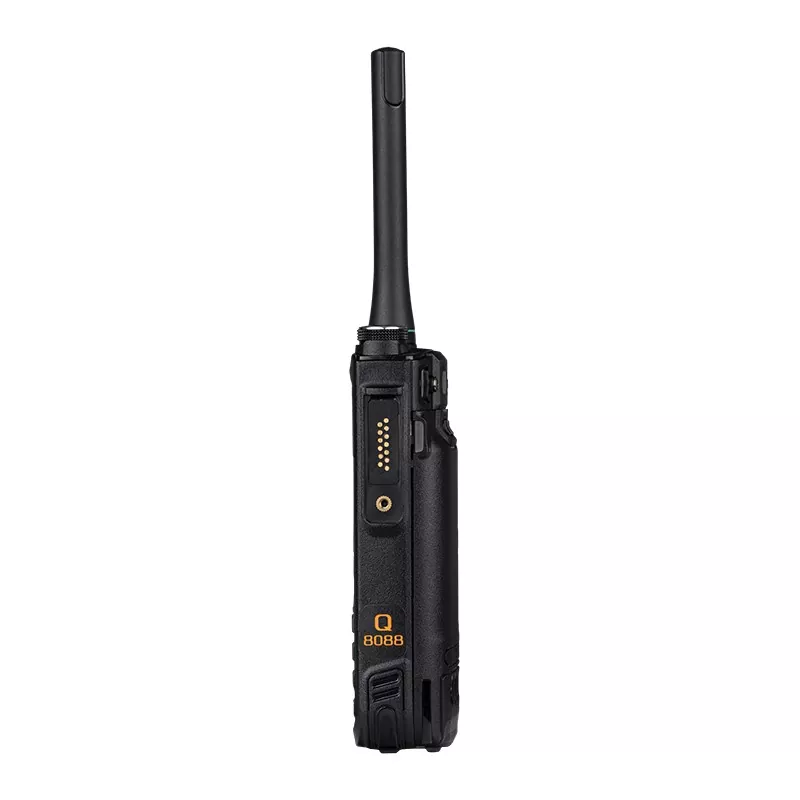

Occursum Q8088, margine nostro professionali digitali trunci radio qui TDMA protocollo utitur cum eliquatione provecta, ut superior coverage prospiciat, etiam in locis humilibus RF signandis. Cum 12.5KHz canali angusto et errore robusto correcto, Q8088 dat communicationem longam distantiam constantem. Product Specification:

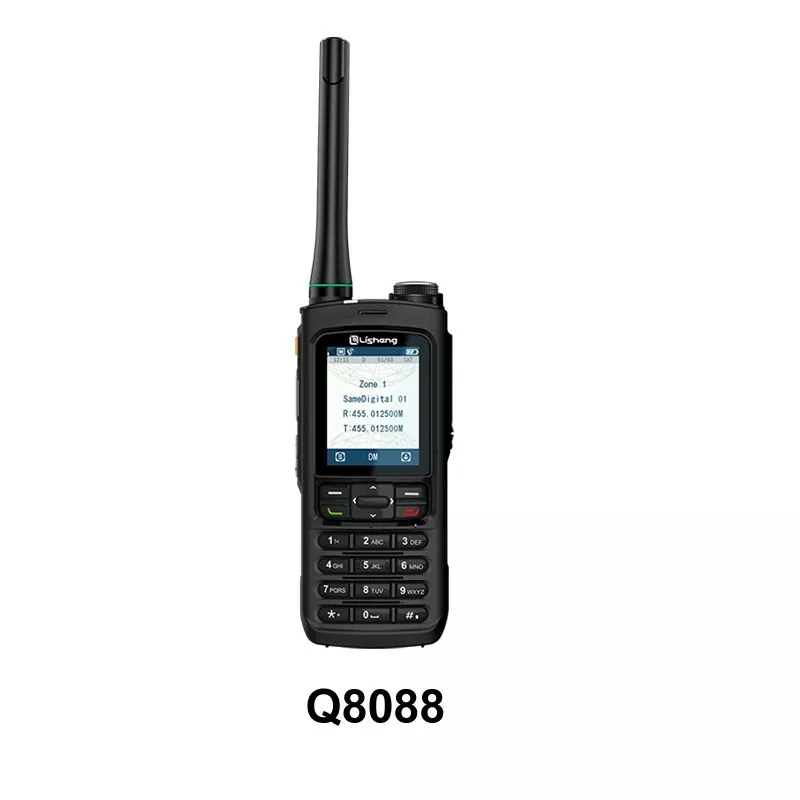

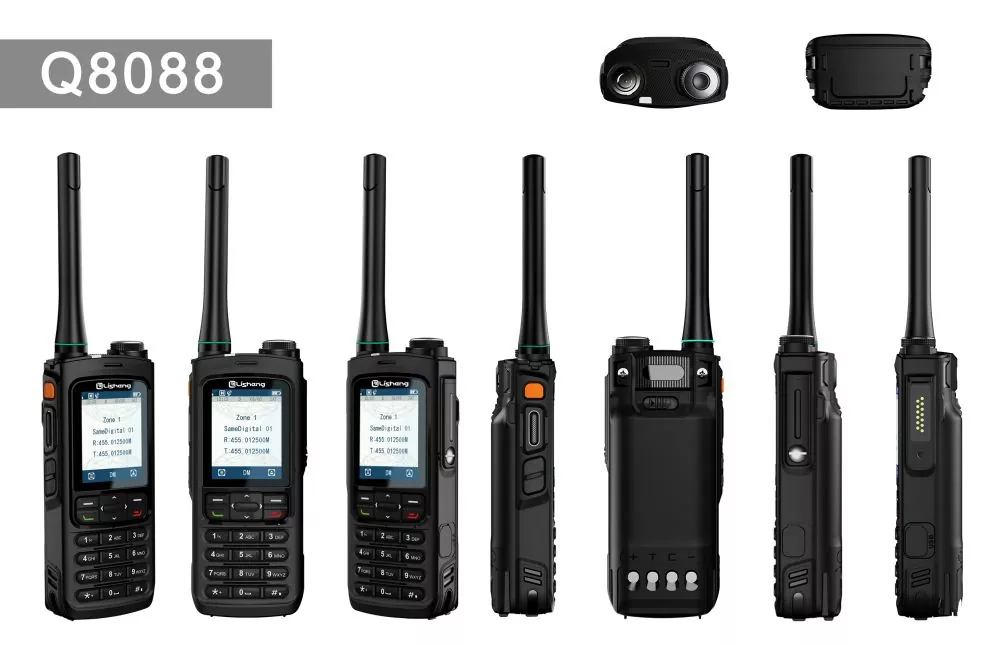

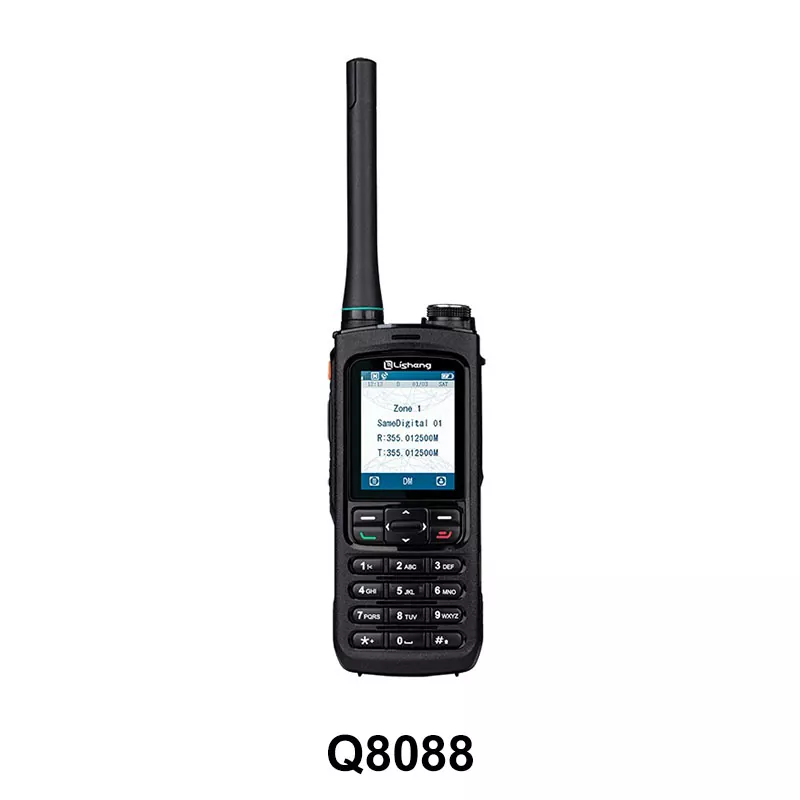

Model:Q8088

Mitte Inquisitionem

depictio producti

Product Specification:

General
Frequentia Range	136~ 174MHz, 350~400MHz 400~470MHz, 450~ 520MHz
Channel Spacing	6.25KHz(NXDN) / 12.5 KHz / 25 KHz
Channel/Zone Capacity	2000 Channels / 64 Zones

Operans intentione	7.4V

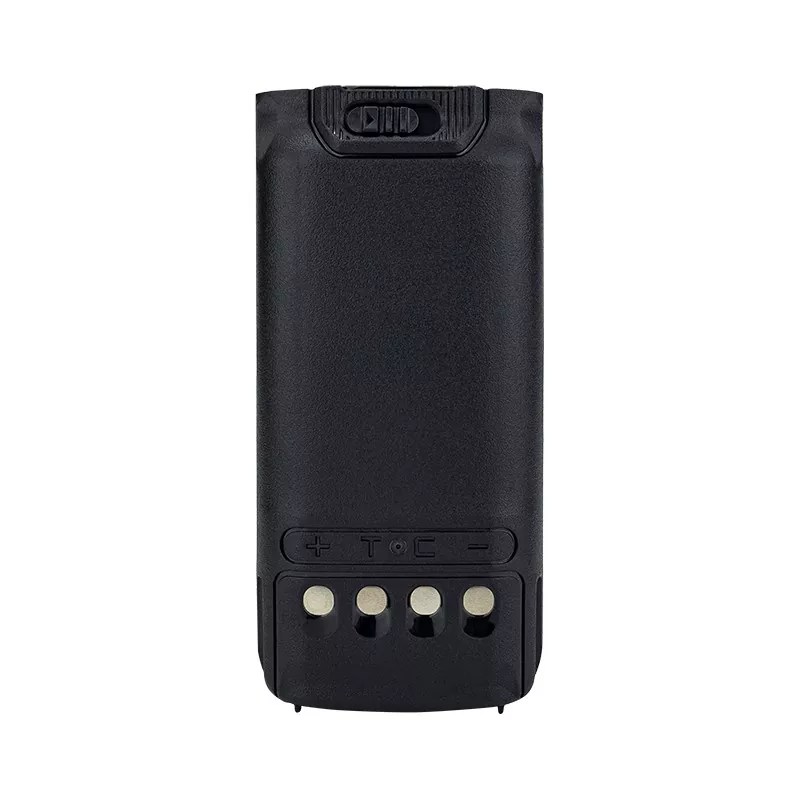

Pugna Capacitas	2000mAh
Pugna vitae (5/5/90)	Analog/NXDN Mode: Horae X; DMR Modus: XII Horae
Vocoder Type	AMBE+2
Frequentia Stabilitas	±1.0ppm
Antennae Impedimentum	50Ω
Dimensiones (sine Antennae)	5.27"H x 2.28" W x 1.26"D (134 x 58 x 32mm)
Pondus	9.38oz (266g)
Ingressus Praesidium (IP) Rating	IP68
receptor
Analog Sensibilitas	0.18μV (Typical) (12dB SINAD) 0.22μV (12dB SINAD) 0.30μV (20dB SINAD)
Digital Sensibilitas	0.20μV (Typical) (BER 5%)
Adiacentibus Channel Selectivity	60dB @ 12.5KHz / 70dB @ 25KHz
Intermodulatio reprobatio	65dB @ 12.5KHz / 65dB @ 25KHz
Clausus	90dB @ 12.5KHz / 90dB @ 25KHz
Co-channel Rejectio	-12dB @ 12.5KHz -8dB @ 25KHz
Responsio spuria rejectio	70dB @ 12.5KHz / 70dB @ 25KHz
Rated Audio Output Power	1.0W / 8Ω
Conducted Spuria Emission	<-57dBm（9KHz～1GHz） <-47dBm（1GHz～12.75GHz）
Transmitter
RF Power	1W (Locus) / ≤5W (High)
Power Margin Variation	+2/-3dB (sub extrema condicione)
Frequentia Error	±1.0ppm
FSK Error	<2%
4FSK Transmissio Bit Error Rate (BER)	≤1×10-4
4FSK Modulation Frequency Error Deviationis	≤10.0%
Occupatus Bandwidth (DMR)	≤8.5KHz
TX Impetum / Release Tempus	≤1.5ms
Adiacentis Channel Power	≤-60dB @ 12.5KHz / ≤-70dB @ 25KHz
Transiens Adjacens Channel Power	≤-50dB @ 12.5KHz / ≤-60dB @ 25KHz
FM Modulation	4K00F1D @ 6.25KHz / 8K0F3E @ 12.5KHz / 16K0F3E @ 25KHz
4FSK Digital Modulation	12.5KHz（data only）：7K60FXD 12.5KHz（data＋voice）：7K60FXE
Audio Distortion	≤3% @ 40% Deviation
Audio Response	+1 ~ -3dB
FM Hum et Sonitus	40dB @ 12.5KHz / 45dB @ 25KHz
emissio spuria	≤-36dBm (9KHz～1GHz) ≤-30dBm (1GHz~12.75GHz)

In indicibus suprascriptis normae ETSI probationes innituntur. Disponibilitas secundum singulas leges et normas nationales variat. Nisi aliter dictum est, omnes specificationes proponere specificationes sunt typicae et quovis tempore sine notatione mutari possunt.

Product Details:

· 2.0″ HD Coloris Display

· VOX

· 3 Modi operandi: Normal/Trunking/Repeater

· Protocolla multa Standard: NXDN/DMR

· DMR/NXDN Tier III

·Vox recordator instructus

· AES256 Encrypted

· Man

· Subitis Alarm

· Vibratio·

· IP68 Rated Waterproof & Pulvis-probationis*

· GPS/Beidou/GLONASS Positioning (Libitum)

· Bluetooth 4.2 Voice/Data Service (Libitum)

Nostra Inseptio et sarcina sectio:

commendamus nos tradens top-qualitas duos modos radiophonicos, ut unumquodque productum in summis signis occurrat per strictas inspectiones et processuum pactionum. Nostra inspectio et turmas sarcinas responsabilitatem fert ut clientes certos fructus accipiant, experientiam liberam usoris anxietatem praebentes.

Processus recognitionis:

1、 Inspectio Visual: Singulae duae radiophonicae inspicientia penitus visuales subit ut aesthetica perfecta curent quae align cum imagine notae societatis.

2、Functionality Testis: Consuetudo nostra inspectio comprehendens functionality quod probat in omni radio agit, omnia curans lineamenta recte agunt. Haec munera clavis includit ut qualitatem audio, robur insignem, et commutatione canalis.

3、Durability Testing: Producta vetustatem probationes subeunt ut in variis condicionibus environmental proprie fungantur, inter extremas temperaturas, humiditatem et vibrationes.

4、 Pugna euismod Testis: Pugna vita pendet pro radiophonico. Testimonia stricta in gravida geruntur ad usum certum, extensum.

Processus packaging:

1 Anti-Static Packaging: Quisque radiophonicum impedimentum anti-staticum patitur ne electrostatic damnum in translatione.

2、Environmentally Friendly Packaging: Commissum ad sustinendum, materias nostras sarcinas adhaerent ad signa environmental internationales.

3、 Offensus-repugnans Packaging: incursu professionali resistens packaging adhibetur per translationem ad impediendum damnum products.

4、Integritas Perscriptio: Societates packaging permittit ut integritas finalis inspiciat ut fructus integra et illaesa maneant post processum packaging.

Inspectio et processuum fasciculorum intendit ut expectationes mos superaret, ita ut omne radiophonicum in bivio acceptum rigorem probationis et sollicitae sarcinae ut summus qualitas operis patiatur.
